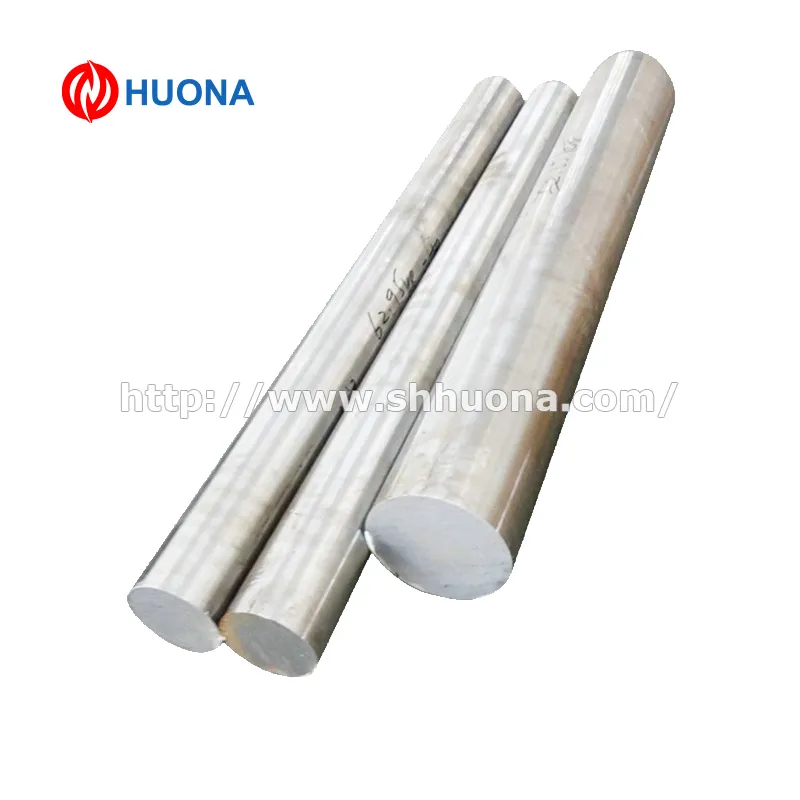

CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar

Name: CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar
Brand: HUONA
Price: 1 USD

China CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar wholesale

Brand Name : HUONA

Model Number : CuNi 44 Rod

Certification : ISO9001

Place of Origin : CHINA

MOQ : 20KG

Price : Bargain

Payment Terms : Western Union,MoneyGram,T/T,L/C

Supply Ability : 1000 Ton/Year

Delivery Time : 5-21DAYS

Packaging Details : Carton, Wooden Case

Model NO. : CuNi44

Elongation : >25%

Diameter : 8-30mm

Surface : Bright or Black Skin

Specification : Rod

Density : 8.9(g/cm3)

Length : 500-1500mm

Transport Package : Carton, Wooden Case

HS Code : 74082200

Contact Now

Product Description

HUONA CuNi44 (CuNi40 CuNi45 CuNi44) Heating Resistance Alloy Rod

Constantan Definition

Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1.50%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan

Resistance Alloy- Constantan Sizes / Temper Capabilities

Condition	Bright;Annealed; Soft
Wire	diameter 0.02mm-1.0mm packing in spool
Wire	big than 1.0mm packing in coil
Rod	Bar diameter 1mm-30mm
Strip	Thickness 0.01mm-7mm
Strip	Width 1mm-280mm

Resistance alloy constantan wire material:
Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.
Characteristics
Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:
High specific heat resistance
Negligible temperature Coefficient
Easily ductile
Resistant to atmospheric corrosion
Can be easily soldered and molded
